SMARTPLY SURE STEP DB

SMARTPLY SURE STEP DB (formally SMARTPLY SURE STEP) is an airtight, tongue and groove OSB/3 panel with a high-performance and durable coating that can be left exposed for up to 45 days without degradation. This innovative panel has been tested in a flooring system to meet the residential internal floor sound insulation requirements of 40dB for use in all timber-based joists in England, Wales and Northern Ireland.

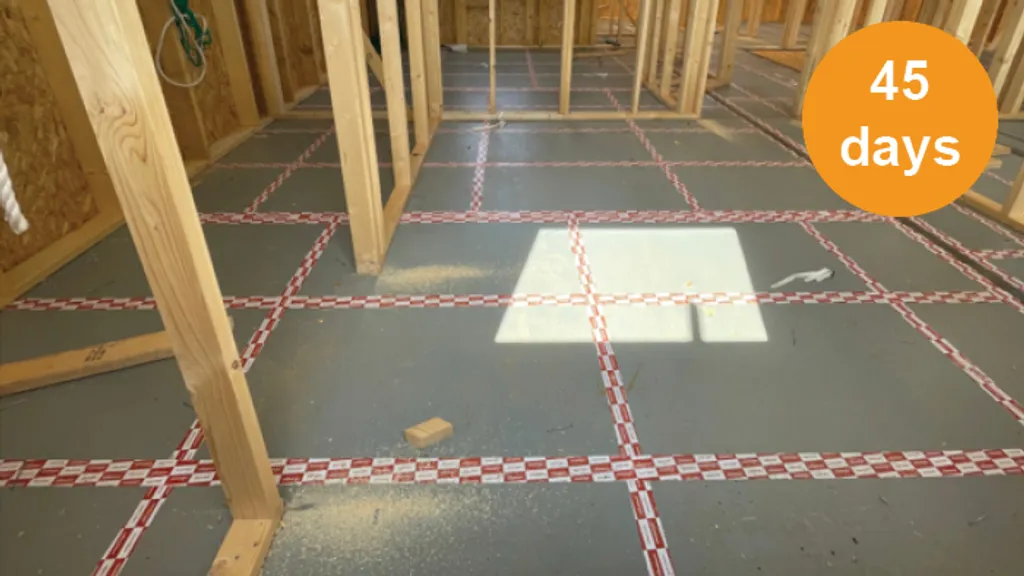

45days

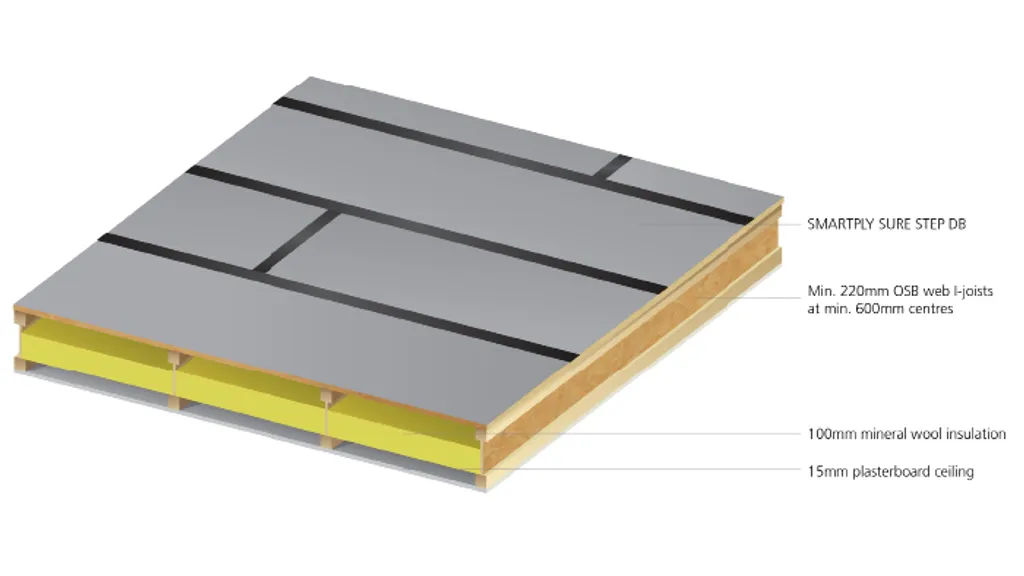

SMARTPLY SURE STEP DB Floor Build-up

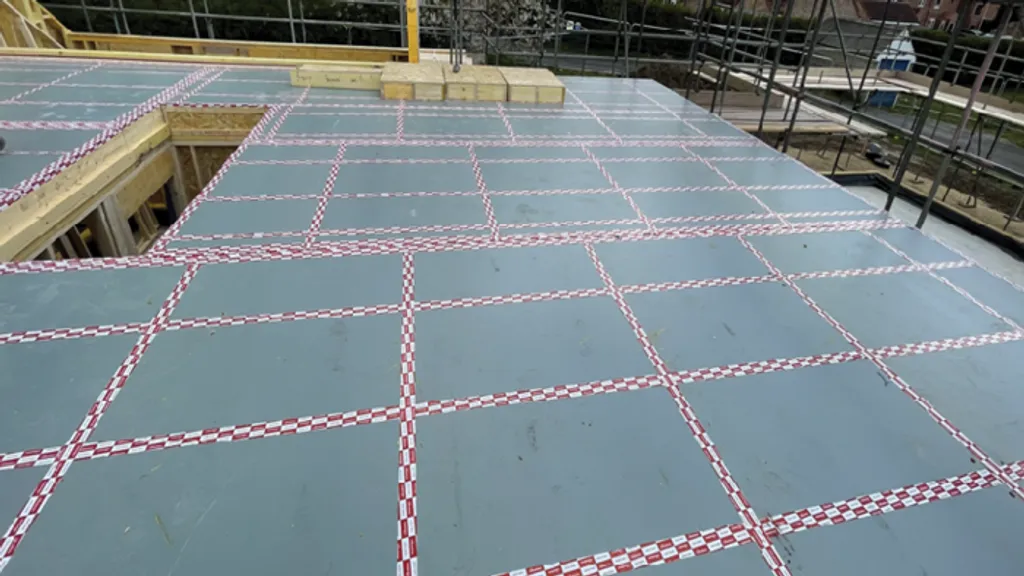

SURE STEP DB INSTALL

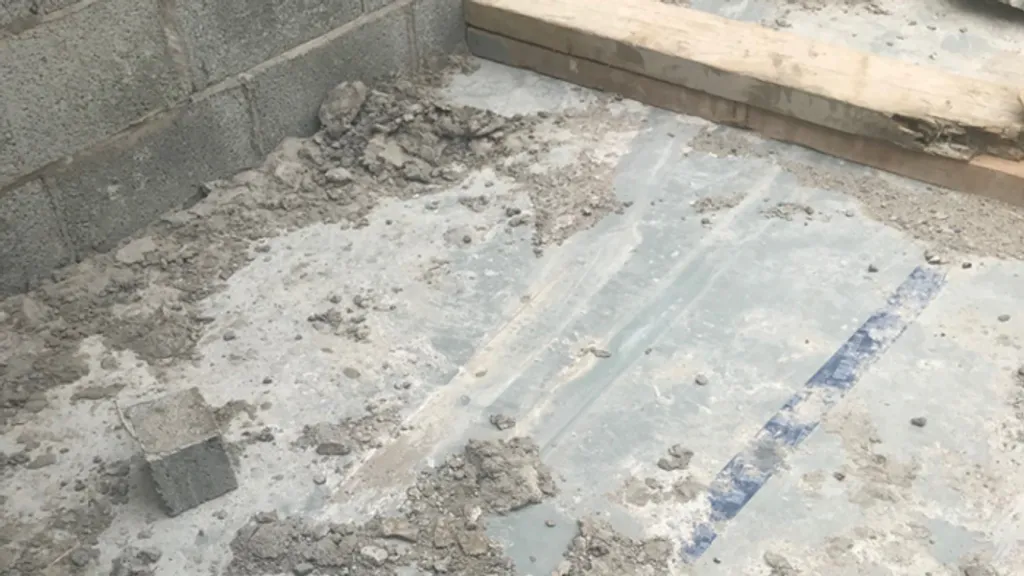

SURE STEP SITE IMAGE
Download data sheet Contact Inspiration

At a glance

  • Can be exposed for up to 45 days without degradation
  • Complies with Building Regulations Part E
  • High performance and durable coating on one face
  • Improved slip resistant panel
  • Contributes to 40dB acoustic requirements
  • High load-bearing capacity

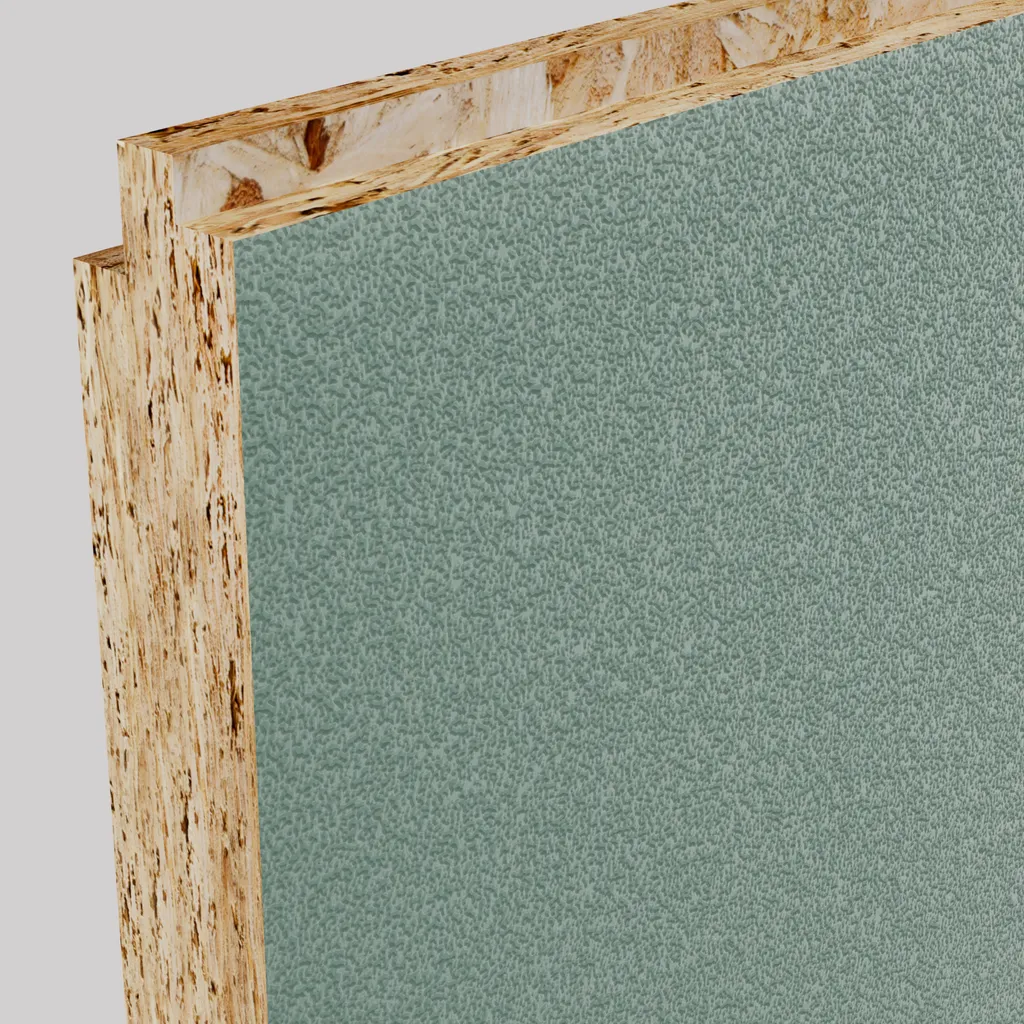

  • Tongue and groove OSB/3 panel

Our technical sales team can help you find the right product

Contact us +44 (0) 1322 424900

Specification and sizes

Others sizes available on request and may be subject to minimum order quantities.

Panel Size
2397 x 1200mm T&G2
Thickness
18mm, 22mm

Applications

Manufactured in accordance with EN 300 SMARTPLY SURE STEP DB is a load bearing panel ideal for use in internal flooring, renovation and newbuilds, or roof decking where improved durability, temporary protection, reduced edge swelling or reduced surface degradation are required on projects. Ideal for use as decking for internal flooring to meet the sound insulation requirements.

To aid with installation of SMARTPLY SURE STEP DB as part of the airtightness layer of low energy and passive buildings, we have created a series of videos which show you how to use SURE STEP DB in a variety of systems. You can also download the file below for step by step instructions.

Videos

FAQs

Peel clean panels have a plastic layer applied on the surface of the panel that can be removed while protected panels such as SMARTPLY SURE STEP DB have a permanent high-performance layer (coating, laminate…) that is permanently applied on the surface. In certain conditions (frost, rain…) peel clean panels can be high slip risk surface.

SMARTPLY SURE STEP DB has been independently tested for durability performance. Results of standing water tests showed that when subjected to still water for up to 45 days only minor damage with cracking of the coating was observed. When installed as per SMARTPLY recommendations and best practices it is expected that SMARTPLY SURE STEP DB can be exposed for up to 45 days and show only minor and inconsequential deformation of the panel surface.

To fully benefit from the properties of SMARTPLY SURE STEP DB a specialist construction tape is recommended to seal the joints between panels. Most of these tapes are waterproof high-performance polyethylene-coated cloth tape and should ensure that panel joints are fully sealed.

SMARTPLY SURE STEP DB is manufactured from OSB/3 panels.

SMARTPLY SURE STEP DB has been certified by a UKAS-accredited laboratory to meet the Building Regulations Part E, in England, Wales and the Technical Booklet G in Northern Ireland, of 40dB acoustic sound rating. This means the panel can be installed as the internal flooring in single dwellings.

See all FAQs for SMARTPLY SURE STEP DB

Downloads

Datasheet SMARTPLY SURE STEP DB Datasheet
Technical SMARTPLY SURE STEP DB Installation Guidelines
Literature SMARTPLY SURE STEP DB Airtight Installation Guidance
Literature Site Safety Brochure
DOPs, CE & UKCA Marks SMARTPLY SURE STEP DB UKCA DOP
DOPs, CE & UKCA Marks SMARTPLY SURE STEP DB CE DOP
Compliance SMARTPLY FSC CERTIFICATE
